MCS_012 3.0 CertifiedSolVe MountSolar Mounting for Rosemary tiles
One of the only Fire Safety compliant roof mountings. Airtight self extinguishing seal complying with MCS_012 3.0 for a future proofed installation.
Last Updated: January 2026
Key Takeaways
- Compatible with Rosemary tiles including Marley Eternit range
- Adjustment required: Raise seal height using washers for thicker tiles
- Mounting zone: 0-20mm from the overlapping tile
- Limitation: Do not install on top layer joins (solution due Q1 2026)
Installing on Rosemary Tiles

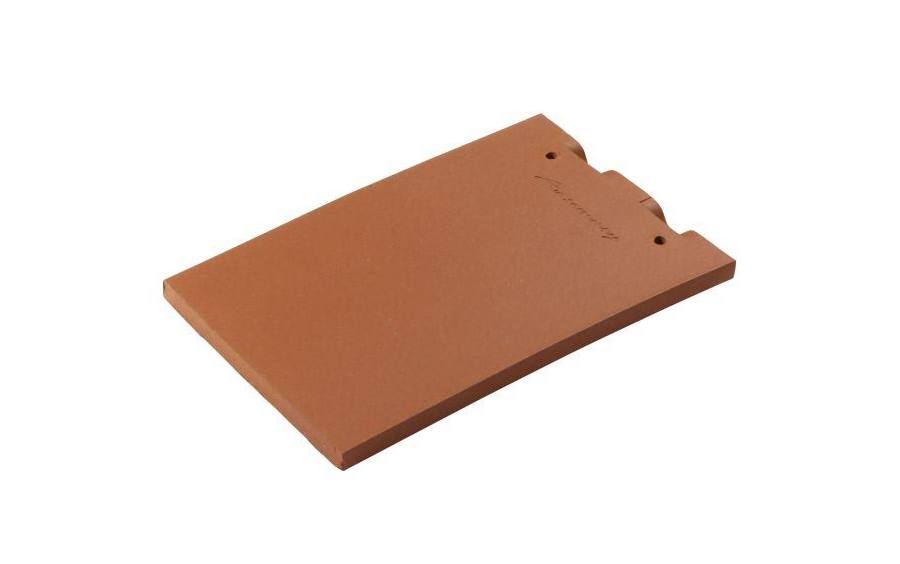

Rosemary tiles are a premium clay plain tile known for their distinctive handmade appearance and rich colour variations. Popular brands like Marley Eternit produce these tiles for traditional and period properties across the UK. The SolVe Mount uses a 28mm diamond core to create a precise opening in the tile or 'working area' to access the rafter. Our expansion seal expands when compressed, pressing outwards on the walls of the core hole and expanding beyond, creating a permanent watertight barrier. Forces are channeled directly to the rafter, ensuring the tile itself carries no load.
What makes Rosemary tiles special: Rosemary tiles have a textured, handcrafted look with subtle variations in shape and colour. This creates a beautiful, natural appearance that's highly valued on heritage and period properties but it makes for an often frustrating solar installation. The SolVe Mount allows for installation without disturbing or removing any Rosemary tiles. The minimally invasive process means less tiles are damaged, fewer delays. Ensures the mount can never flex into tile below resulting in call backs.
Installation approach: Like other clay tiles, Rosemary tiles require adjustment to raise the seal height. Pre-assemble the SolVe Mounts > 28mm Diamond Core through the tiles > Fix the Mount, making any adjustment needed to raise the seal height to 30-35mm above the Rosemary tiles. Pre set the remaining Mounts. Tighten the nut to compress and expand the seal.
How to install:
CORE - 28mm diamond core to create your 'working area' to access the rafter.
DRILL - Pre-drill using the drill guide provided.
FIX - Screw in the fully assembled SolVe Mount. Raise the seal height for Rosemary tiles, tighten the nut to compress and expand the seal.
DONE - Your MCS certified, IPX8 rated Rosemary tile roof mount is complete.
The SolVe Mount ensures no load is transferred to the Rosemary tile roof and creates a watertight seal that will outlive the roof covering.
Making solar installation simple, fast and repeatable. No Rosemary tile expertise required.
Unshrinkable Technology
Maintains a permanent 34-36mm expansion above and below the roof covering, ensuring no retreat or seal degradation over time.
172-Year Longevity
ASTM D395B testing confirms ~30% compression set after 172 years, preserving elasticity and waterproof "springiness."
Load Isolation
Forces are channeled directly to the rafter. The seal expands radially, exerting pressure only on the core hole walls, not the rosemary tile.
Triple-Seal Protection
Primary seal matches roof covering depth, augmented by upper and lower seals for 100% watertight confidence.
