How the SolVe Mount Works – easy Solar Roof Mounting
Watch the installation animation below and understand the engineering behind our watertight seal technology. The SolVe Mount cores through the roof covering—no drilling through the tile or slate.
Does the SolVe Mount Require Drilling Through Slate?Key Concepts
Unshrinkable
Maintains a permanent 34-36mm expansion above and below the roof covering, ensuring no retreat over time.
Longevity
ASTM D395B testing confirms ~30% compression set after 172 years, preserving elasticity and "springiness."
Load Isolation for Slates/Tiles
The rail attachment rests on a flange nut, stopping downward forces and channeling them directly through the bolt to the rafter. The seal expands radially, exerting pressure solely on the core hole walls. View compatible roof coverings.
Environmental Resilience
Proprietary synthetic material resists degradation for 500+ years; immune to UV, salt, and stable at temperatures from -60°C to +200°C.
Triple-Seal Protection
Primary seal matches roof covering depth, augmented by upper and lower seals for comprehensive coverage.
20-Year Leak-Free Guarantee
Backed by superior materials and simple installation for unmatched reliability.
2D SolVe Mount Installation Animation

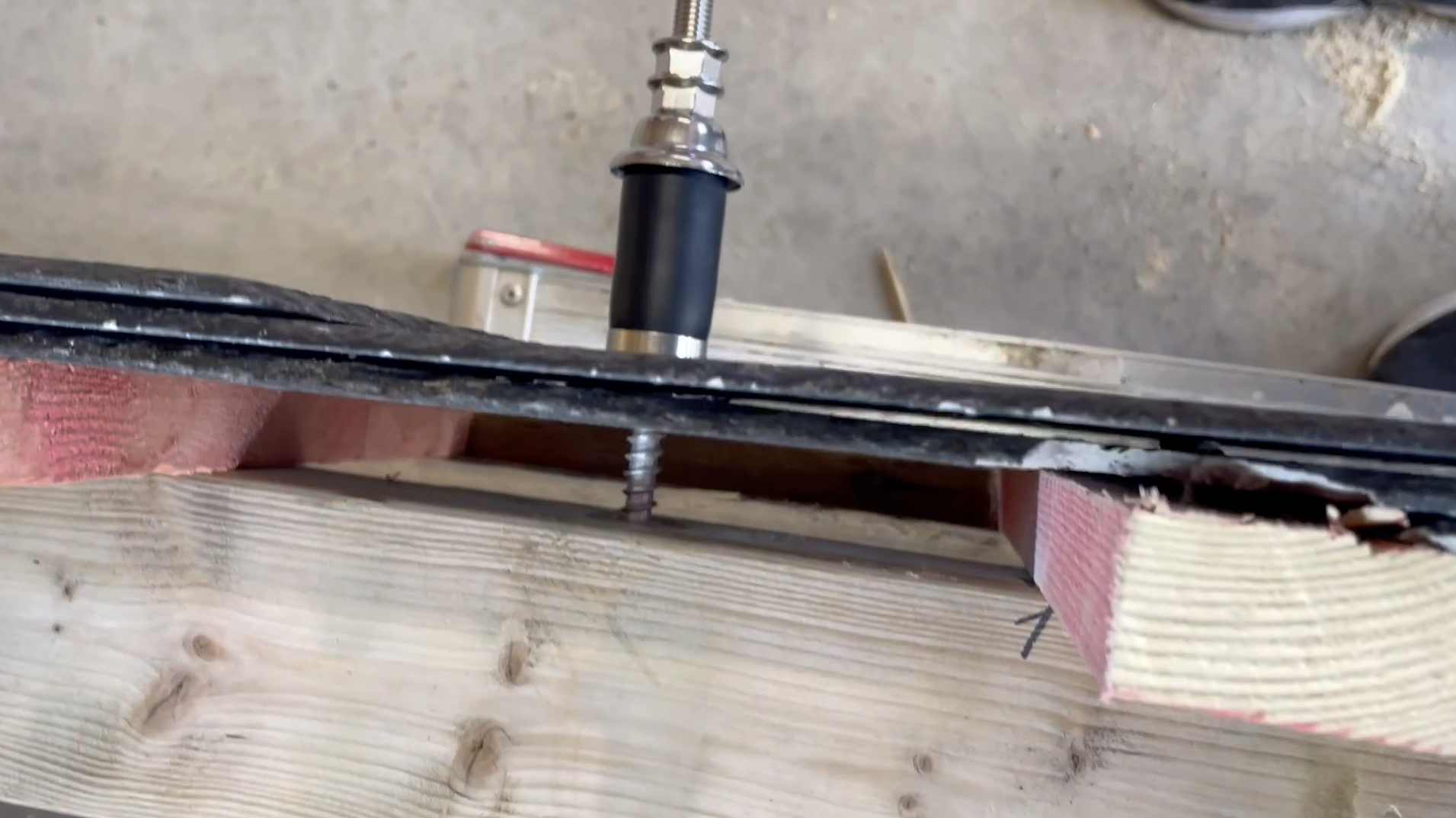

Close Up Installation Video Below
Video Close Up
Compatible With
View Full Compatibility GuideKey Specifications
Core Drilling
The least disruptive, minimally invasive solar mounting solution.
Pre-Drill Depth
70mm with a 7mm wood bit; tolerant up to 5mm from the rafter edge for easy, flexible placement.
Seal Expansion
70mm → 50mm compression causes expansion radially to 34-36mm
Material
200mm Marine grade A4-80 bolt. 33% stronger that A4-70. Proprietary Synthetic Seal.

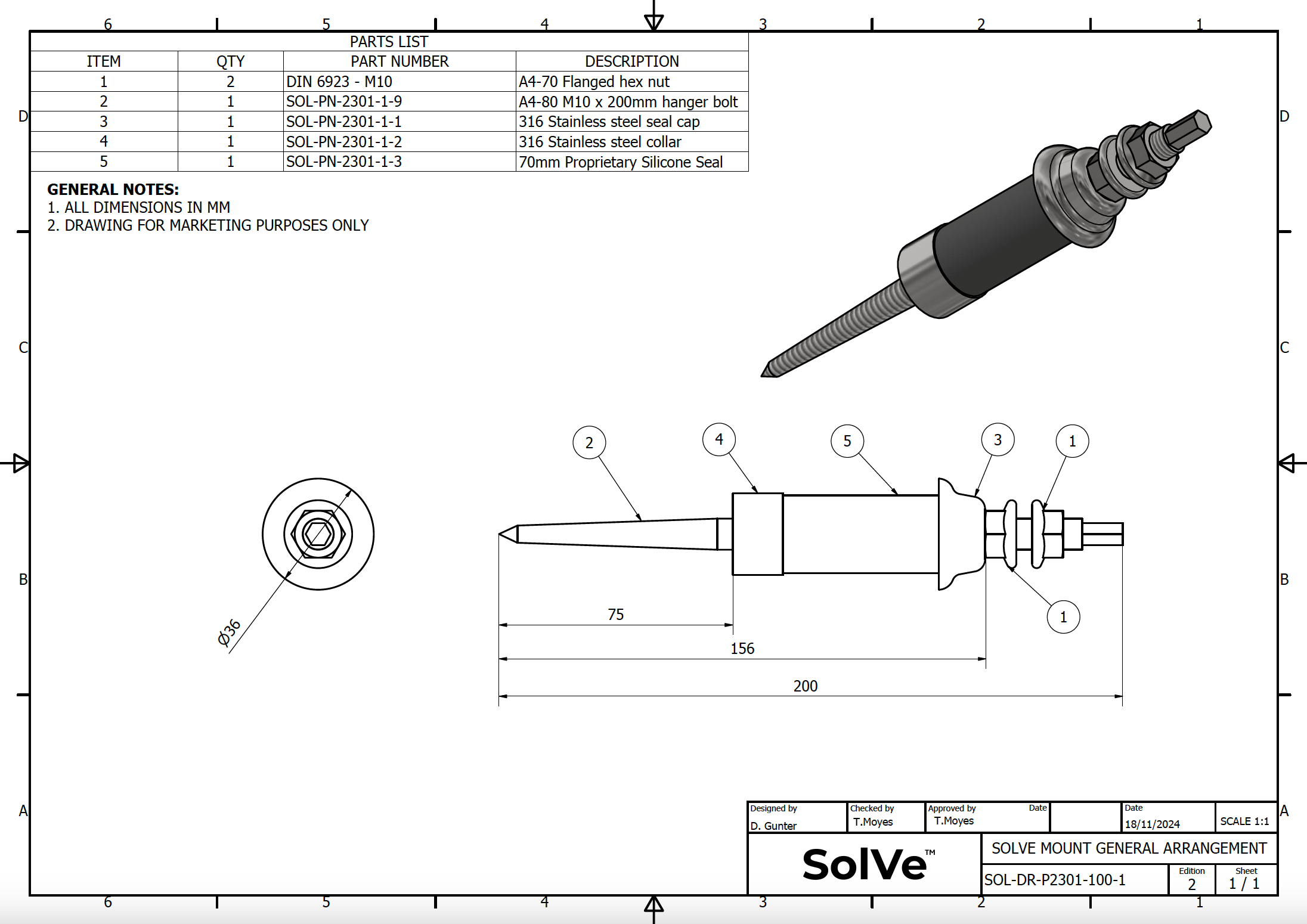

SolVe Mount General Drawing
Technical drawing showing all components and dimensions. Click to enlarge for detailed viewing.
